Positive
Both the C and T lines develop color.
BUSINESS & PRODUCT INFORMATION
Business & Products
DIAGNOSIS
Diagnosis
Faster Disease Diagnosis,
On Site in 10 Minutes
JINDANI is a lateral-flow immunoassay solution for rapidly identifying major plant and soil pathogens in the field. Apply a prepared sample and read the C/T lines without complex equipment, helping teams respond at the right time.
- 10 min
- On-Site Results
- 24 types
- Disease & Pest Tests
- 95%
- Sensitivity & Specificity

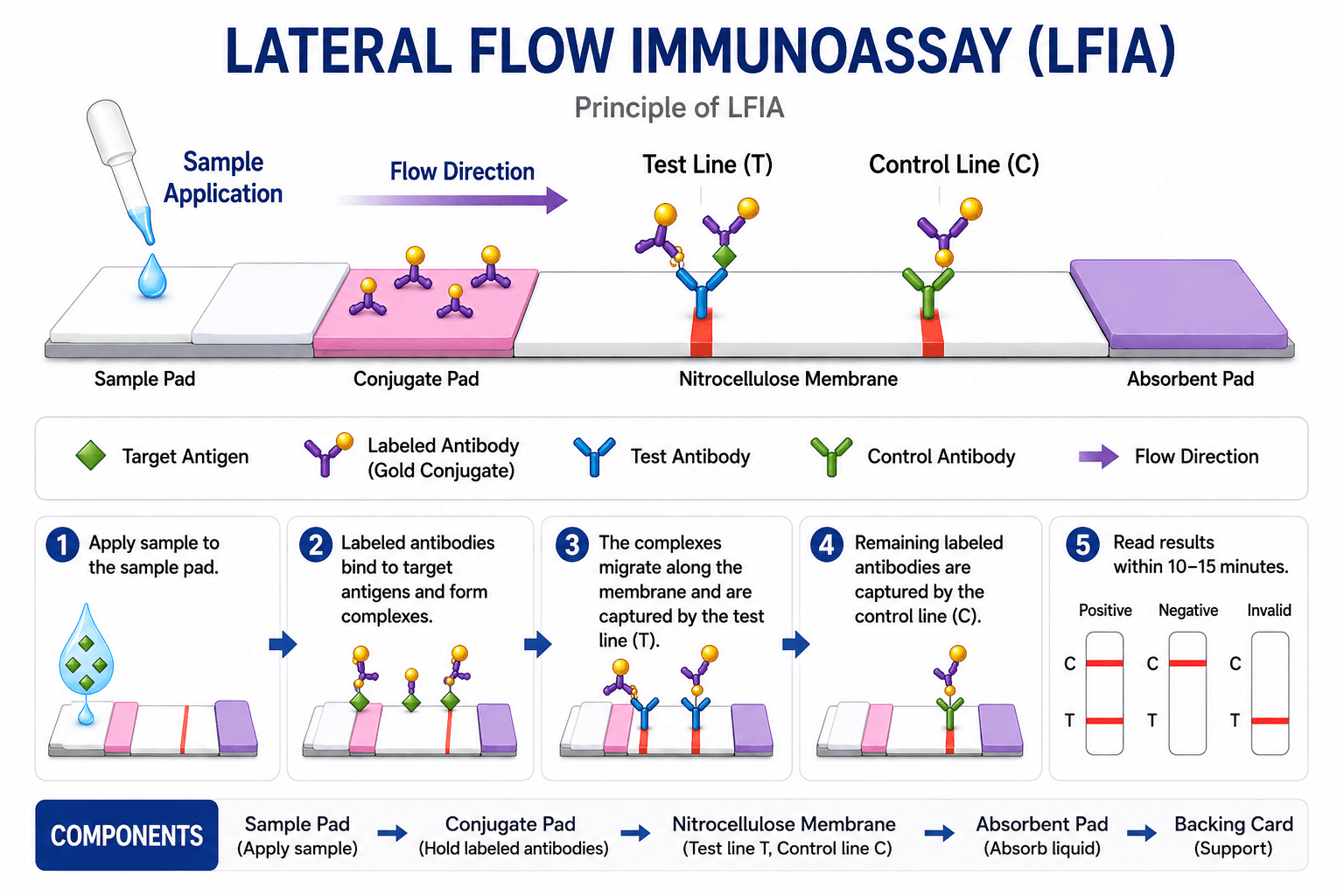

Lateral Flow Immunoassay (LFIA)
LFIA uses the selective binding of target antigens and antibodies. The resulting complexes migrate along the membrane, are captured at the test and control lines, and produce visible results.
- 01
Apply the Sample
Extract the plant or soil sample and apply it to the sample pad.
- 02
Bind the Labeled Antibody
The target antigen binds to a labeled antibody and moves along the membrane.
- 03
Capture at the Test Line
The antigen-antibody complex is captured and develops color at the test line (T).
- 04
Confirm the Control Line
Color at the control line (C) confirms that the test is valid.
- 05
Read the Result
Read the C/T lines and their intensity after approximately 10–15 minutes.
Reading the Results
Negative
Only the C line develops color; the T line is absent.
Invalid
Run the test again if the C line does not appear.
What Sets the Diagnostic Kit Apart
Four capabilities distinguish the solution: rapid on-site analysis, semi-quantitative readings, soil diagnosis, and an easy-to-use device format.
On-Site Analysis in 10 Minutes
- Testing directly at the crop site
- No time or location constraints
- Tests for 24 major diseases and pests
Semi-Quantitative Technology
- Estimates severity based on pathogen concentration
- Supports disease-risk forecasting
Soil Diagnosis
- High sensitivity and specificity (95%)
- Supports management before planting
- Distinctive soil immunodiagnostic technology
Easy-to-Use Device Format
- Familiar lateral-flow cassette format
- Simple enough for non-specialists
- Fast and safe diagnosis
Expanding Precision Diagnostics through Advanced Technology
ABC Circle is expanding from antibody technologies to fluorescent immunoassays and digital data, strengthening diagnostic precision and broadening potential applications.
Monoclonal Antibodies
Consistent antibodies improve diagnostic sensitivity, specificity, and repeatability.
- Improved sensitivity and specificity
- Consistent diagnostic performance
Recombinant Antibodies
Recombinant antibody production supports scalable manufacturing with controlled quality.
- Scalable antibody production
- Productivity and quality control
Fluorescent Immunoassay
Fluorescence-based detection enables precise readings at lower target concentrations.
- Higher sensitivity
- Expansion into food safety and quarantine
Digital Data & App
Field readings become digital data that can support analytics and surveillance.
- Large-scale diagnostic data
- Potential linkage with national surveillance systems
Diagnostic Kit Components
The kit includes the tools and cassette formats needed for sample collection, preparation, testing, and interpretation.
24 Diagnostic Kits for Plant Diseases and Pests
Fusarium Wilt
Late Blight
Bacterial Wilt
Soft Rot
Damping-Off
Anthracnose
Fire Blight
Black Shoot Blight
Plant-Parasitic Nematodes
TSWV
CMV
CGMMV
YMV
MNSV
BBWV2
TMV
TYLCV
PMMoV
PepMoV
TuMV
PVY
CABYV
Coming Soon
WMV
Coming Soon
CymMV
Coming Soon
Complete Diagnostic Kit Catalog
Download the PDF catalog for the testing principle, kit components, and disease and pest coverage across all 24 diagnostic kits.
2026 ABC Circle JINDANI CatalogReview the testing principle, kit components, and disease and pest coverage.English · 28 pages · approx. 15MBDownload English Catalog
